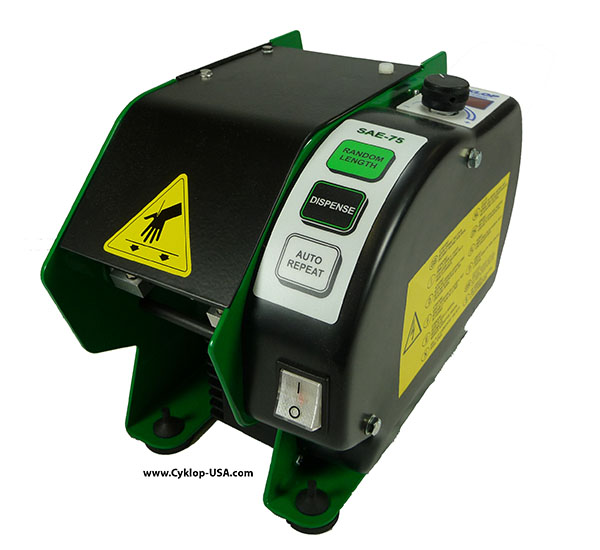

Model SAE-75
Zucchelli introduces a new tape dispenser for a wide range of pressure sensitive tapes up to 3" widths.
Powerful, easy to use, simple to feed tape. This dispenser offers an extra heavy duty motor for tough applications and feed rollers that will dispense virtually all self-adhesive tapes.
This unit dispenses tapes from .6" up to 3" widths at the rate of 12" per second. The dial setting will offer pre-measured lengths of 2" up to 51" with rolls of tape up to 7 1/2" diameter.
Key Benefits
- Small, Compact, Heavy Duty
- Easy to use
- It works with tapes from 15 to 75mm (0.6 to 3”)
- DC running and DC control circuits – 24 V
- Sturdy design for industrial applications
- With repeater
Specifications:
Electrical power: 115v, 60 hz
Types of Tape: PVC, polypropylene, reinforced, biadhesive, etc.
Sound level: Less than 70 dB(A) plus "tape release from roll" noise
Width: min. 15mm./max. 75 mm.
Length: min. 50 mm./max. 1300 mm. (2"-50")
Dispensing Speed: 18 m./minute (12")
Dimensions of machine: 155x270x205 mm.
Weight: 6 Kg. or 13.2 pounds
The SAE-75 offered a random key, a dial setting for one set length, and a repeat key.
The best way to determine the best machine for dispensing your tape is to send a sample end roll of tape and the spec for dispensing to one of our distributors. Include information regarding the number of pieces per minute and if you require automatic dispensing.
Need parts or service? Contact one of our distributors.
